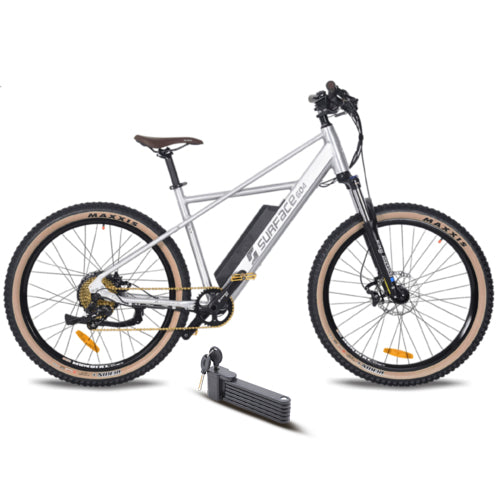

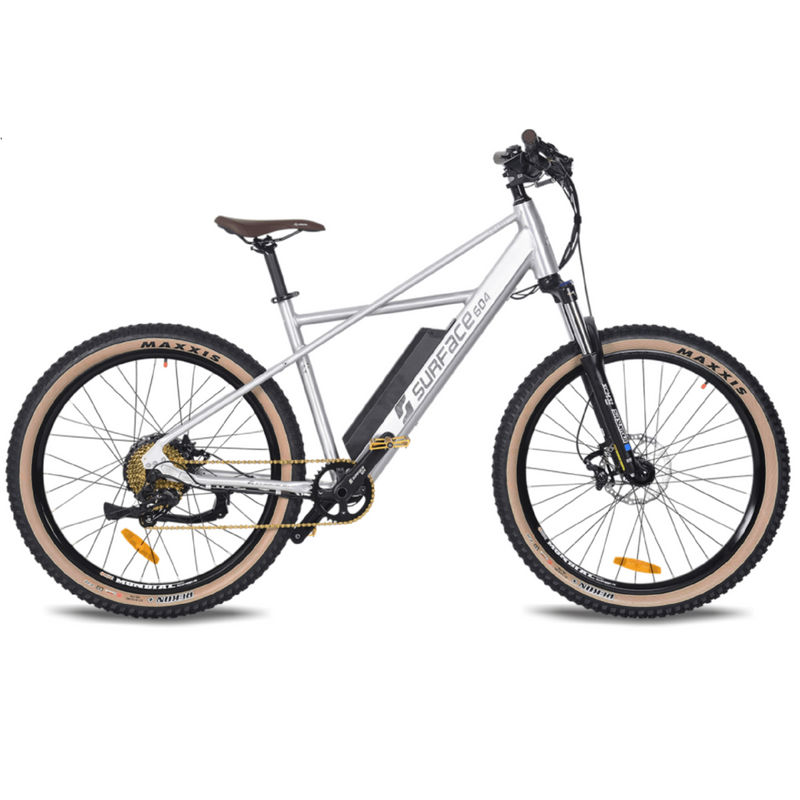

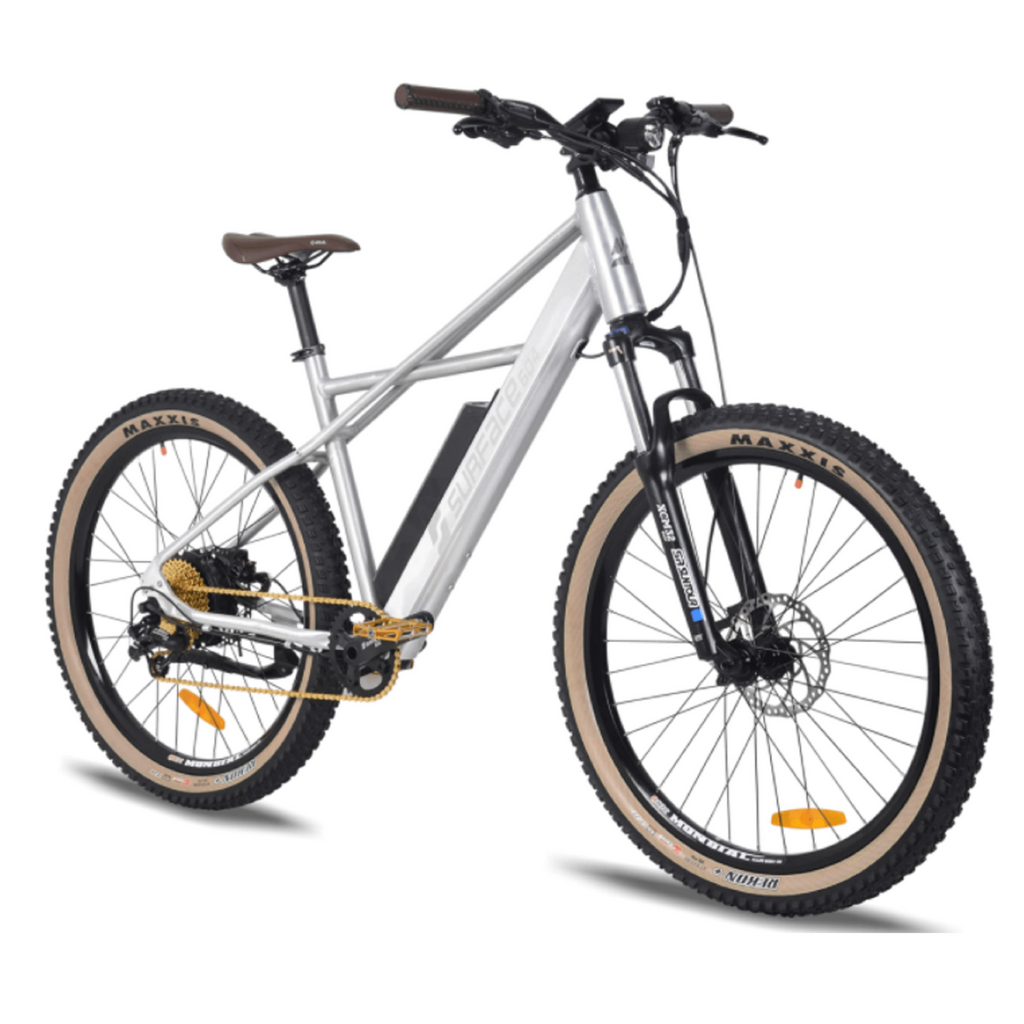

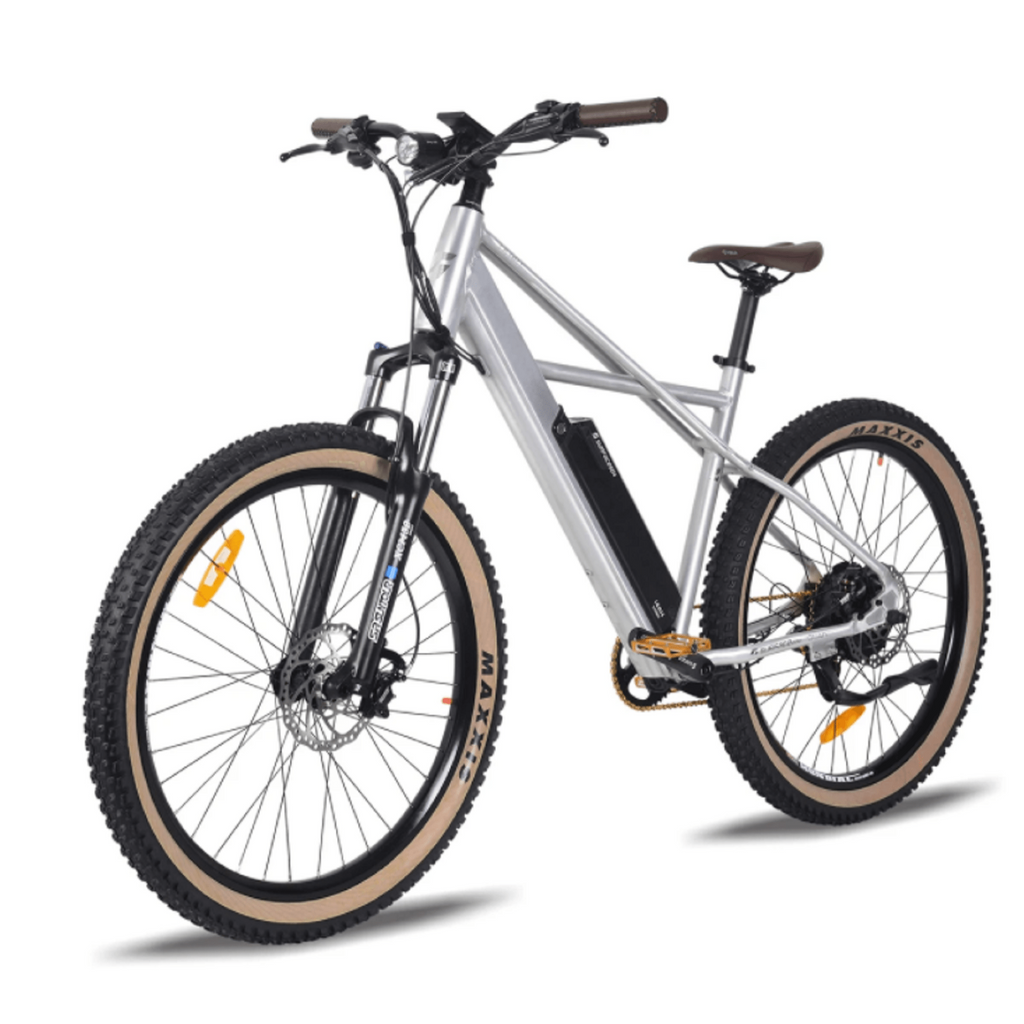

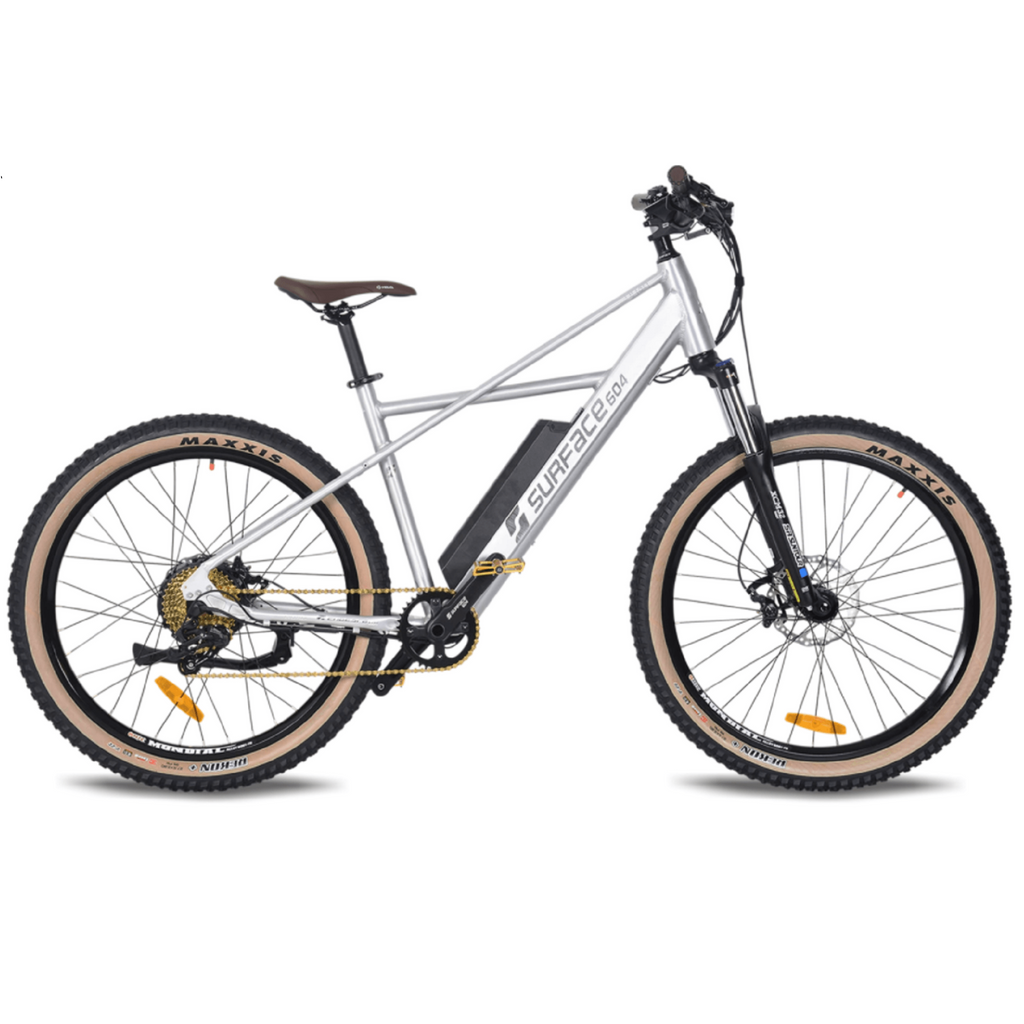

Surface 604 500W Quad Off-Road Electric Bike

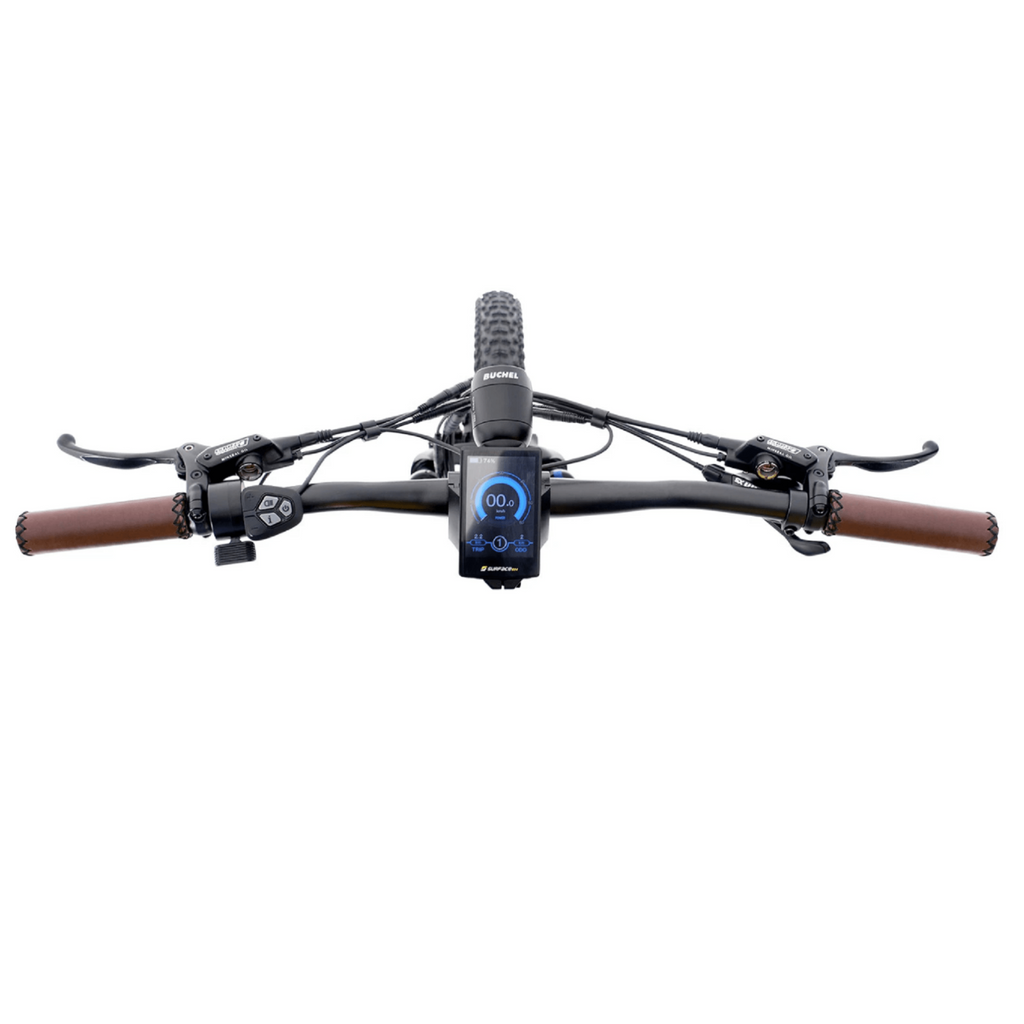

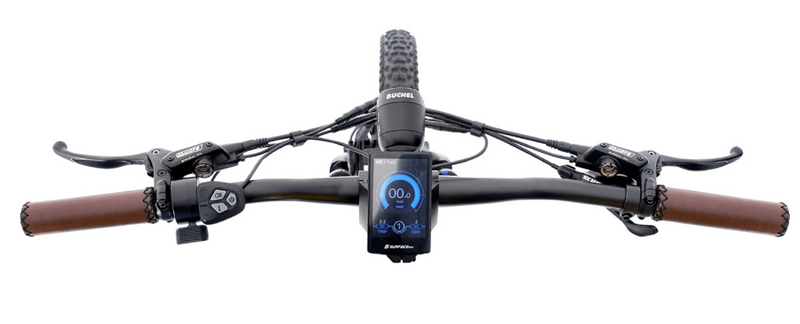

The bike has a redesigned cockpit, which has an extra-large LCD to provide access to vital information. The LCD comes with a micro USB jack, so you keep your mobile charged on the trip. You can set a passcode without which the bike won’t start without it, ensuring added security.

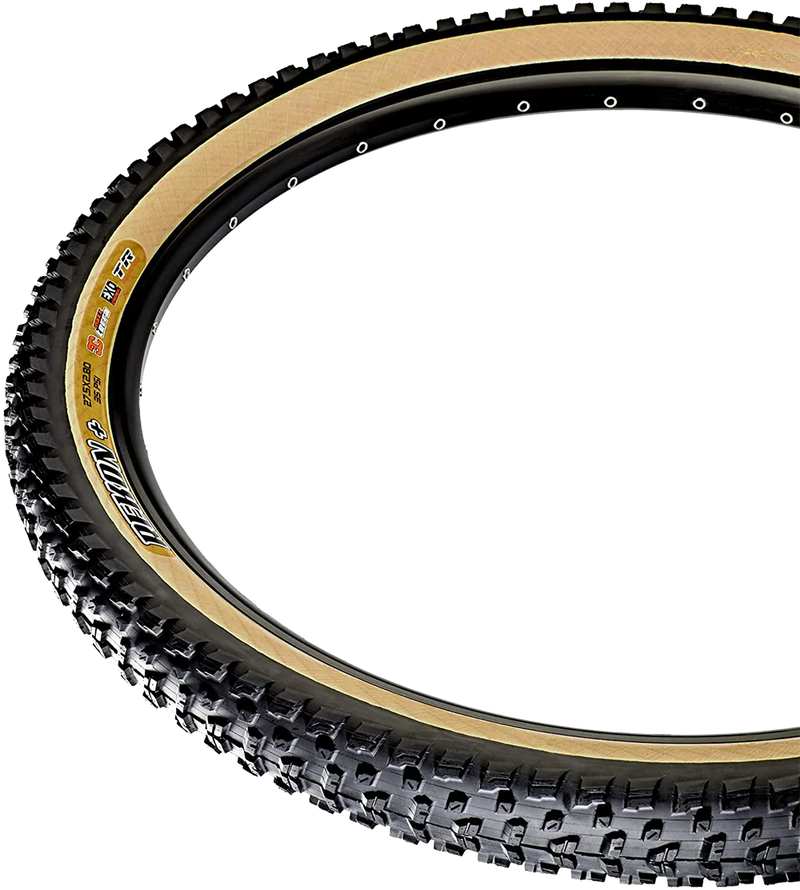

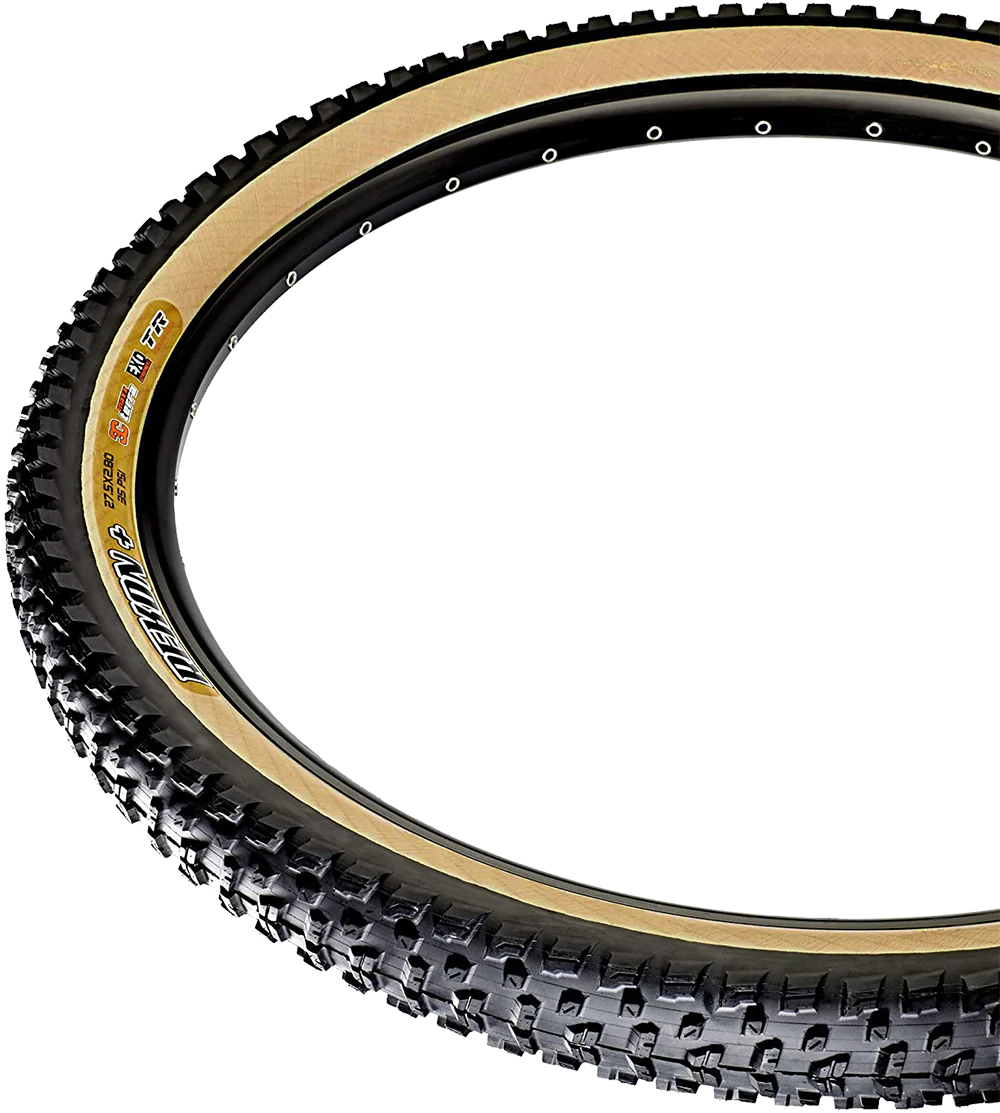

The bike is an all-terrain rider as it is equipped with Maxxis Rekon + Skinwall 27.5’’ X 2.8’’ plus-size tires that have an EXO casing. The tires have been designed to tackle the most challenging conditions on the road. Due to the larger contact patch you achieve, you achieve perfect grip to ride through the rough patches.

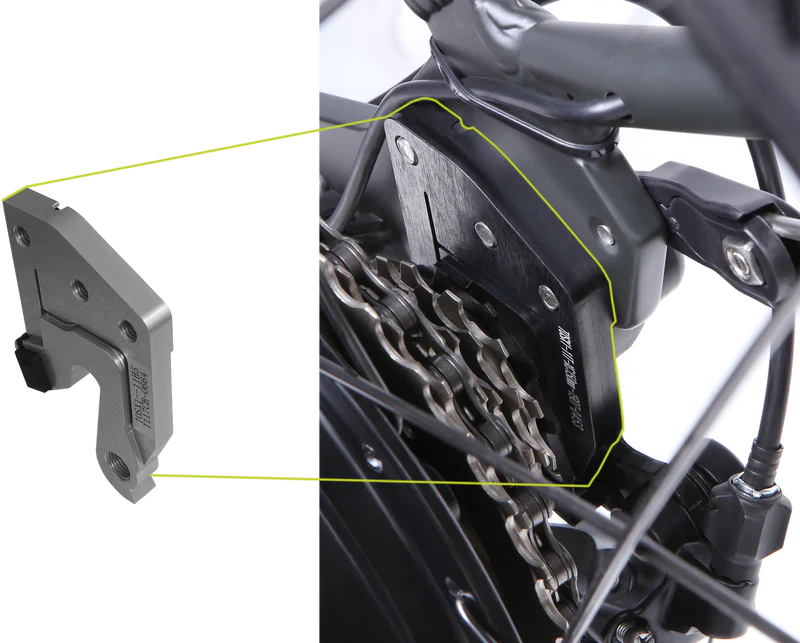

The bike is equipped with a whisper smooth torque-sensing pedal assist, which analyzes the force you apply to the pedals and matches it with an appropriate amount of power.

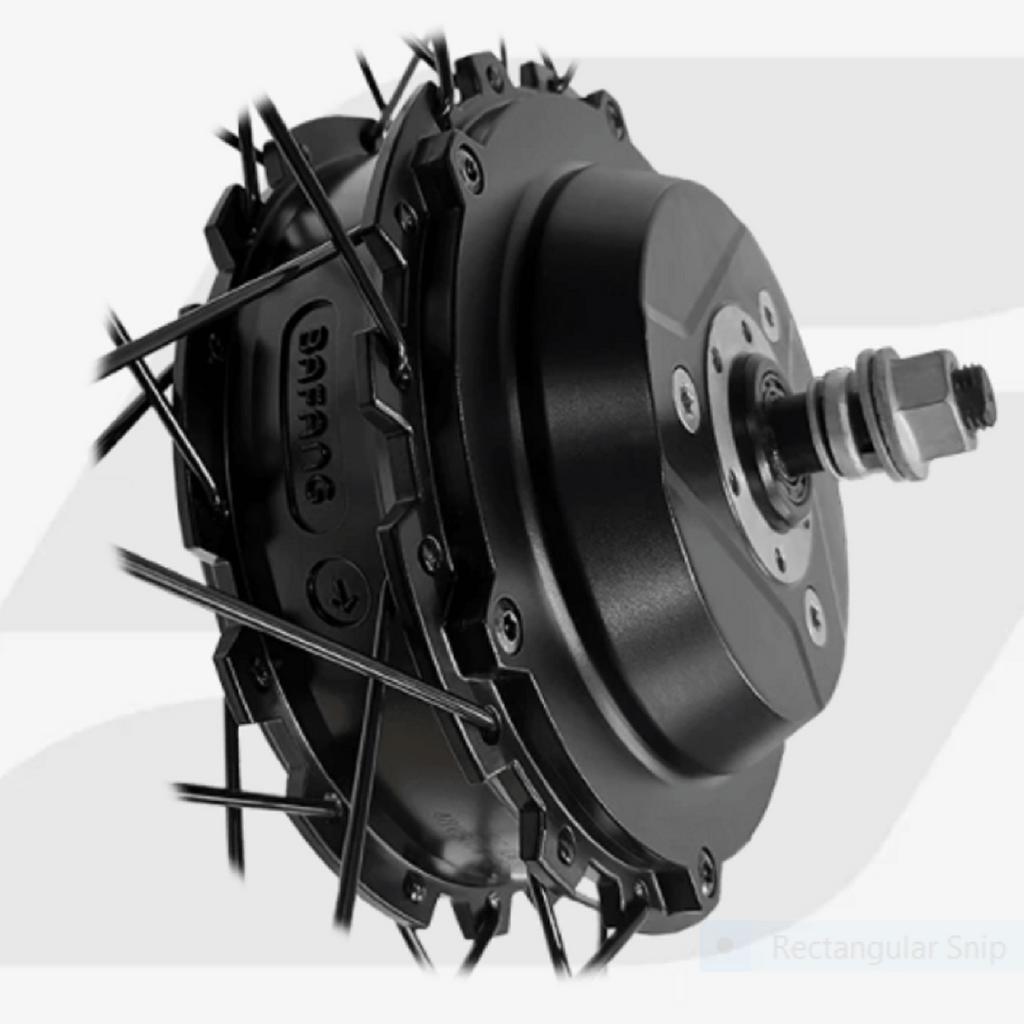

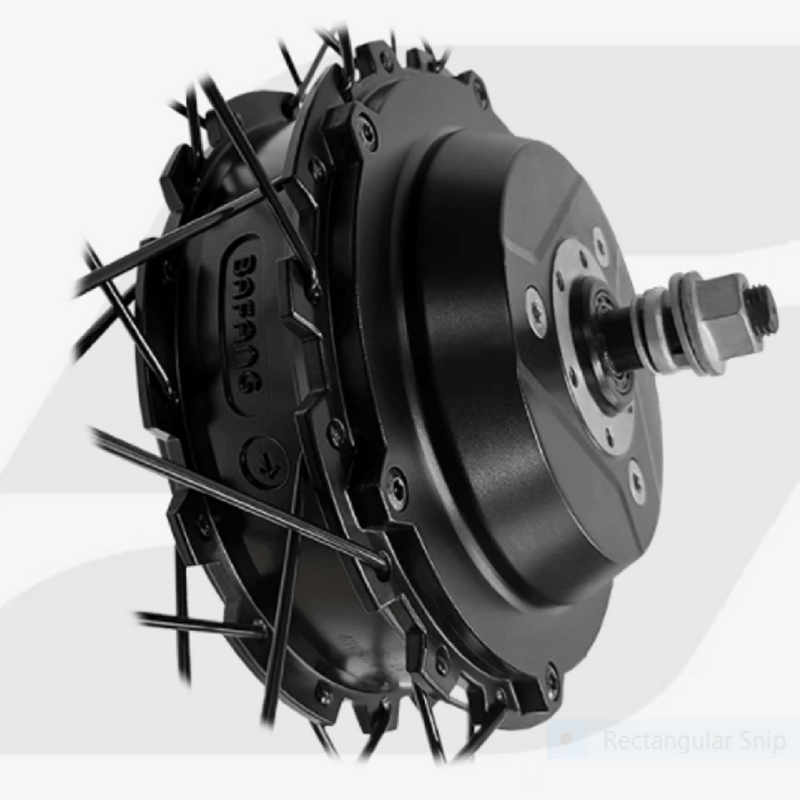

MOTOR: eMTB Specific 500W (Peaks At 750W) Bafang Geared Hub Brushless Motor
CONTROLLER: SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart

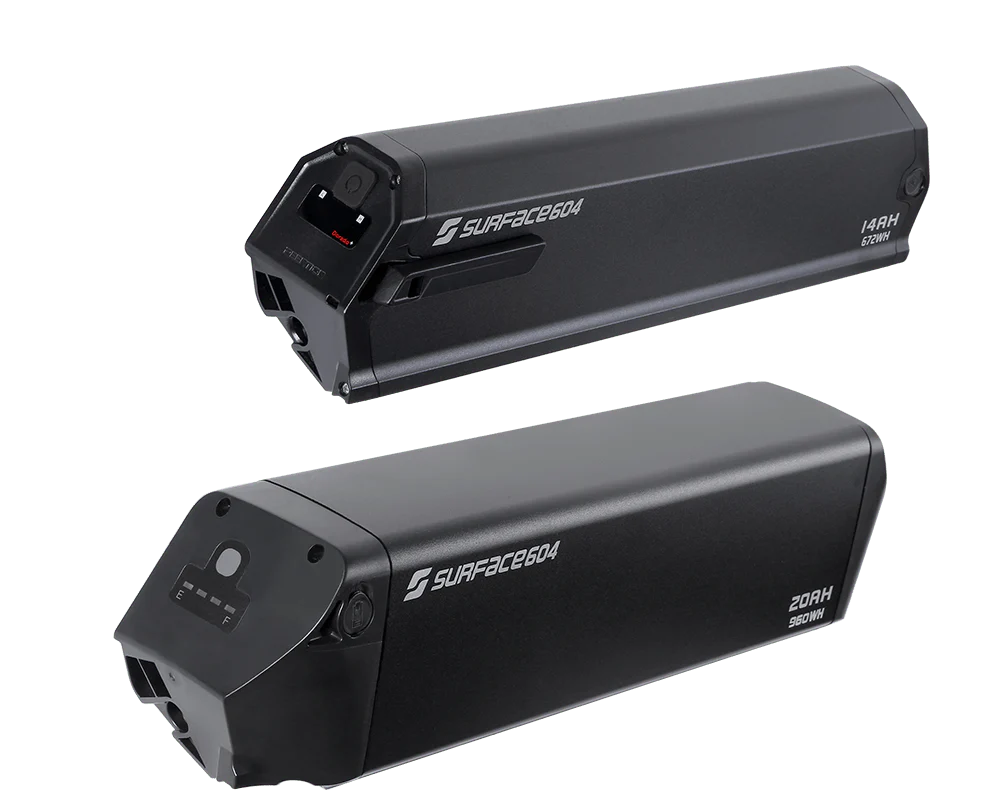

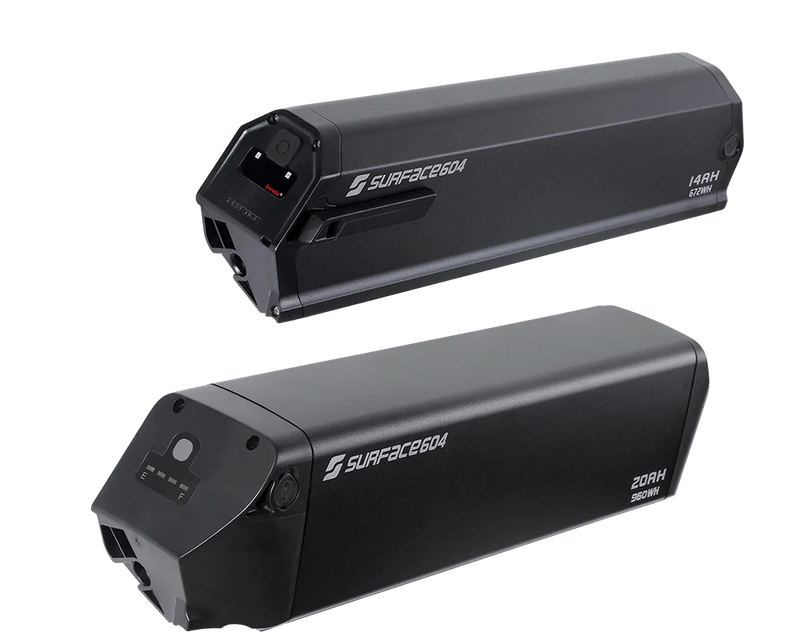

BATTERY: Included: 48V 14Ah / 672Wh Samsung lithium-ion 18650 cells
BATTERY RANGE: Up to 45mi (72km) with a 48V14Ah Battery
BATTERY CHARGE TIME: 3-4 Hours for a Full Charge from Empty
DISPLAY TYPE: SURFACE604 Color LCD Display with USB Jack
DERAILLEUR: SRAM X5 9-Speed 1-Piece forged CNC with 2 sealed bearings
BRAKES: TEKTRO Dorado eMTB Specific Hydraulic Disc, Quad Piston, 180mm Rotor with Motor Inhibitors
FRAME TYPE: Tapered Headtube, Custom Reinforced Battery Mounts,
Internal Cable Routing, Post Mount Brakes
FRAME MATERIAL: 6061 Aluminum Alloy
WHEELS/TIRES: Maxxis Rekon+ 27.5” x 2.8” Skinwall tires (3C, Exo casing tech)
RIMS: Aluminum Alloy Double Wall Rim, 27.5″x13Gx36H
RECOMMENDED RIDER HEIGHT: Frame Sizes: S/M - 17.5", M/L - 19.5"
For Riders: S/M 5’2”-5’7”, M/L 5’8” - 6’6”
NET WEIGHT (INCLUDING BATTERY): 61-65lbs
BATTERY WEIGHT: 3.45KG/7.5lbs
WEIGHT CAPACITY
285lbs (130kg)
OTHER: Adjustable Kickstand, Water Bottle Bosses Matching Accents Throughout I.E. Seat, Grips, Tires, Gold Chain, Pedals
